*** EXPECT UNIVERSAL INSTALLATION *** Clamp on or Weld-on, Sized properly for RIPP exhaust system.

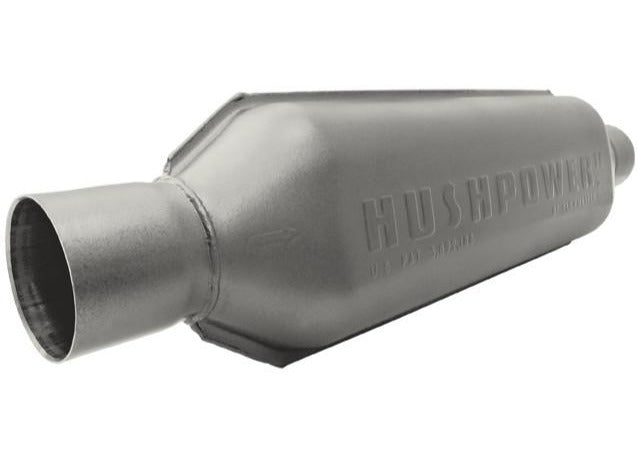

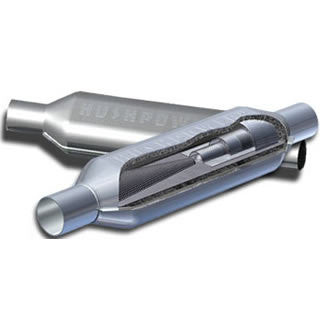

The 409S HP-2 mufflers have a case length of 18-inches and a 4.00 X 5.50-inch width. Due to their Cool Shell Technology they can be placed in virtually any location under the vehicle. The 409S HP-2 mufflers feature a painted 409S outer shell, and 409S internal construction. 2.50-inch inlet/outlet diameters, there is a model available to suit your needs. The HP-2 line offers a wide variety of applications from rock crawling to award winning customs.

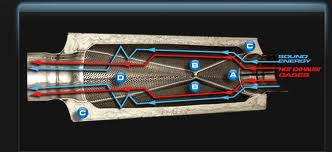

A. Entry Cone
Hot exhaust gases entering the tapered inlet section are actually accelerated as they pass through the perforated cone into the outer core area. The perforation pattern and entry angle are specifically engineered into each product to provide optimum airflow characteristics.The sound energy is reflected and redirected back into itself as well as into the outer thermal core by the carefully selected taper angle of the entry cone.
B. Laminar Flow Area
The hot exhaust gases are released and allowed to expand into this section in multiple layers due to the tapered angle of the entry cone. This produces a controlled laminar flow pattern, that reduces turbulence inside the muffler. Sound waves lose energy in this section through the expansion of the exhaust gases and reflective angles of the cones which direct the waves into the thermal barrier material.
C. Thermal Barrier
The thermal barrier between the outer core section and muffler case provides a portion of the mufflers sound energy absorption characteristics. This thermal barrier is engineered to deliver much lower exterior case temperatures, allowing the muffler to be placed closer to heat sensitive areas
D. Exit Cone
The increased surface area and angle of the tapered exit cone provides an "easy exit" for the hot exhaust gases that encourages the flow out of the muffler. The carefully selected taper angle of the exit cone directs and focuses the sound energy back into itself. This convergence of sound waves reduces the sound level as it passes out of the muffler.
- 409 Stainless Construction
- 18-inches and a 4.00 X 5.50-inch width
- Can be placed in virtually any location under the vehicle.
- 409S outer shell, and 409S internal construction.
- 2.50-inch inlet/outlet diameters
- Winner of the 2007 Ridler Award, Troy Trepanier of Rad Rides by Troy!
Note: For application on a 2dr. vehicle; fitment is very tight because of the lack of space. Please have a professional exhaust or muffler shop help with the installation.
