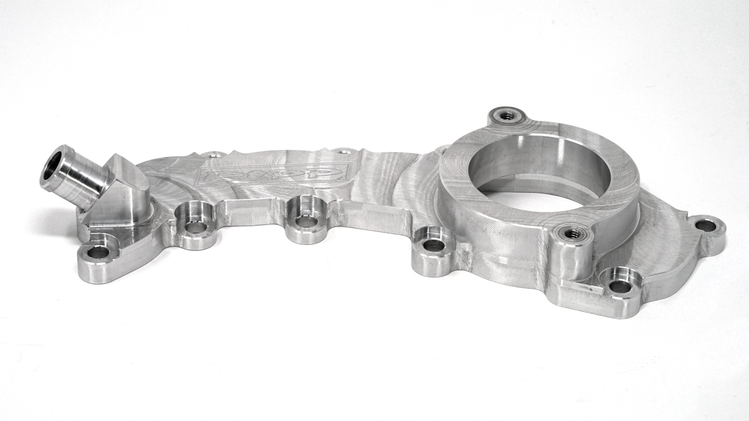

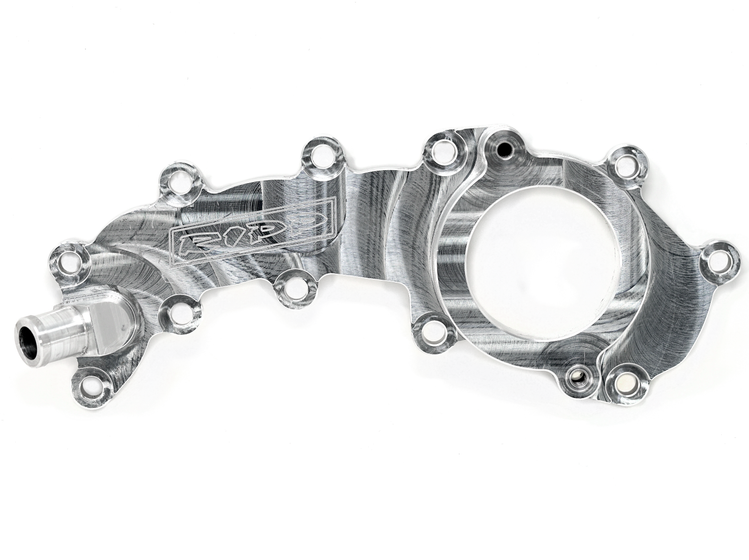

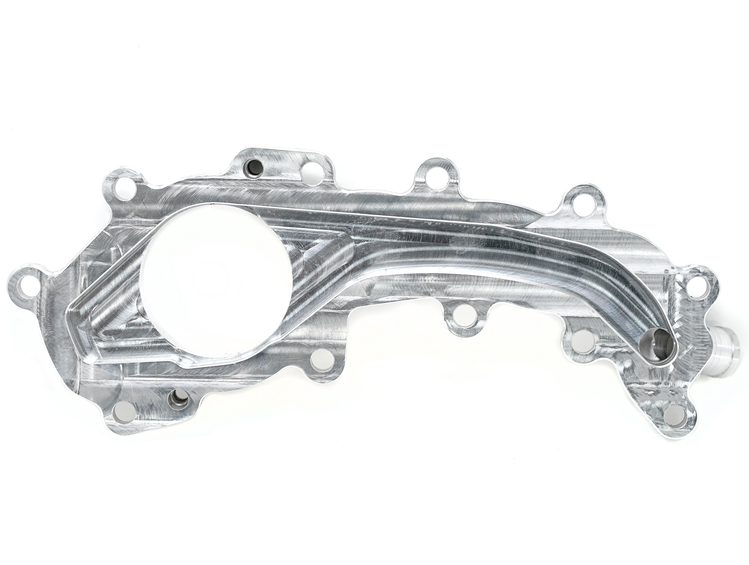

The RIPP Coolant Crossover Plate is manufactured and designed for supercharger installations on select vehicles. Made from billet aluminum and CNC machined for precision, this plate features a low-clearance design to create additional space on the engine block and coolant hose relocation. This is the same part included in select RIPP supercharger kits. Please select your vehicle before checkout to ensure compatibility.

Don't forget a RIPP Thermostat Housing and Thermostat for your vehicle.

Key Features:

• RIPP logo
• Billet aluminum construction
• CNC machined for perfect fitment
• RTV sealant is included for installation.

Pro Tips:

Ensure you have a clean work area. Keep track of all hardware and note the specific sizes and locations of each bolt, as some bolts are different lengths.

Reuse Spacer/ Bolt Collars: Identify the bolts with the plastic spacer/collar and make sure to reuse these. This is important to maintain proper alignment during installation.

Clean Mating Surface: Use a Scotch-Brite pad and carb cleaner to thoroughly clean the mating surface on the engine block. This will help ensure a secure, leak-free seal.

Apply RTV Sealant: Apply a thin, even layer of RTV sealant to the mating surface of the crossover plate. Wait 2-3 minutes for the sealant to become tacky before proceeding.

Install Plate: Carefully place the crossover plate on the engine block. Avoid using excessive RTV sealant, as excess may squeeze out and potentially contaminate the coolant system.

Bolt Tightening: Reinstall the bolts in their correct locations. Ensure proper torque settings as specified by your vehicle’s manual. Double-check the alignment and spacing. 52 inch-pounds. (4.5 ft-lbs)

Final Inspection: After installation, inspect for proper alignment and ensure there is no excess RTV that could interfere with the coolant system.
